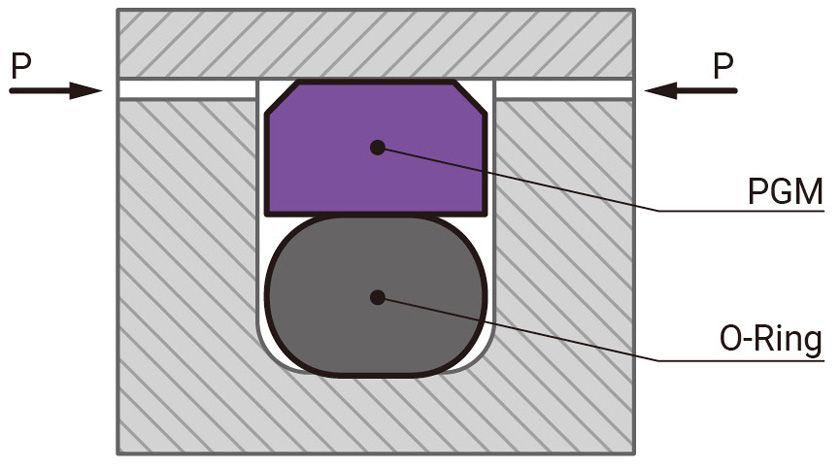

Operating Conditions

PGM is recommended for linear (with a length of stroke at least twice the groove width) and helical movements.

Pressure Up to 60 MPa
Speed Up to 15 m/s
Frequency Up to 5 Hz.
Temperature -45 °C to +200 °C. Depending on seal and O-Ring material
Media Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally friendly hydraulic fluids (bio-oils), phosphate ester, water and others, depending on the seal and O-Ring material compatibility see Materials for PGM
Clearance The maximum permissible radial clearance Smax is shown in Installation Dimensions as a function of the operating pressure and functional diameter.

Important Note : The above data are maximum values and cannot be used at the same time, e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also depends on media.



Recommended Materials

The following material combinations have proven effective for hydraulic applications:


PGM in PS8WM

All round material for light to heavy hydraulic applications with linear or helical movements in mineral oils, flame retardant hydraulic fluids, phosphate ester, bio-oils or fluids having low lubricating properties:

O-Ring NBR 70 Shore A N
FKM 70 Shore A V
Set Code PS8WMN or PS8WMV


PGM in PS61B

For medium to heavy applications with linear movements in mineral oils and other medium with good lubrication:

O-Ring NBR 70 Shore A N
FKM 70 Shore A V
Set Code PS61BN or PS61BV

For specific applications, all PTFE materials are available.

Other material combinations are listed in Materials for PGM.

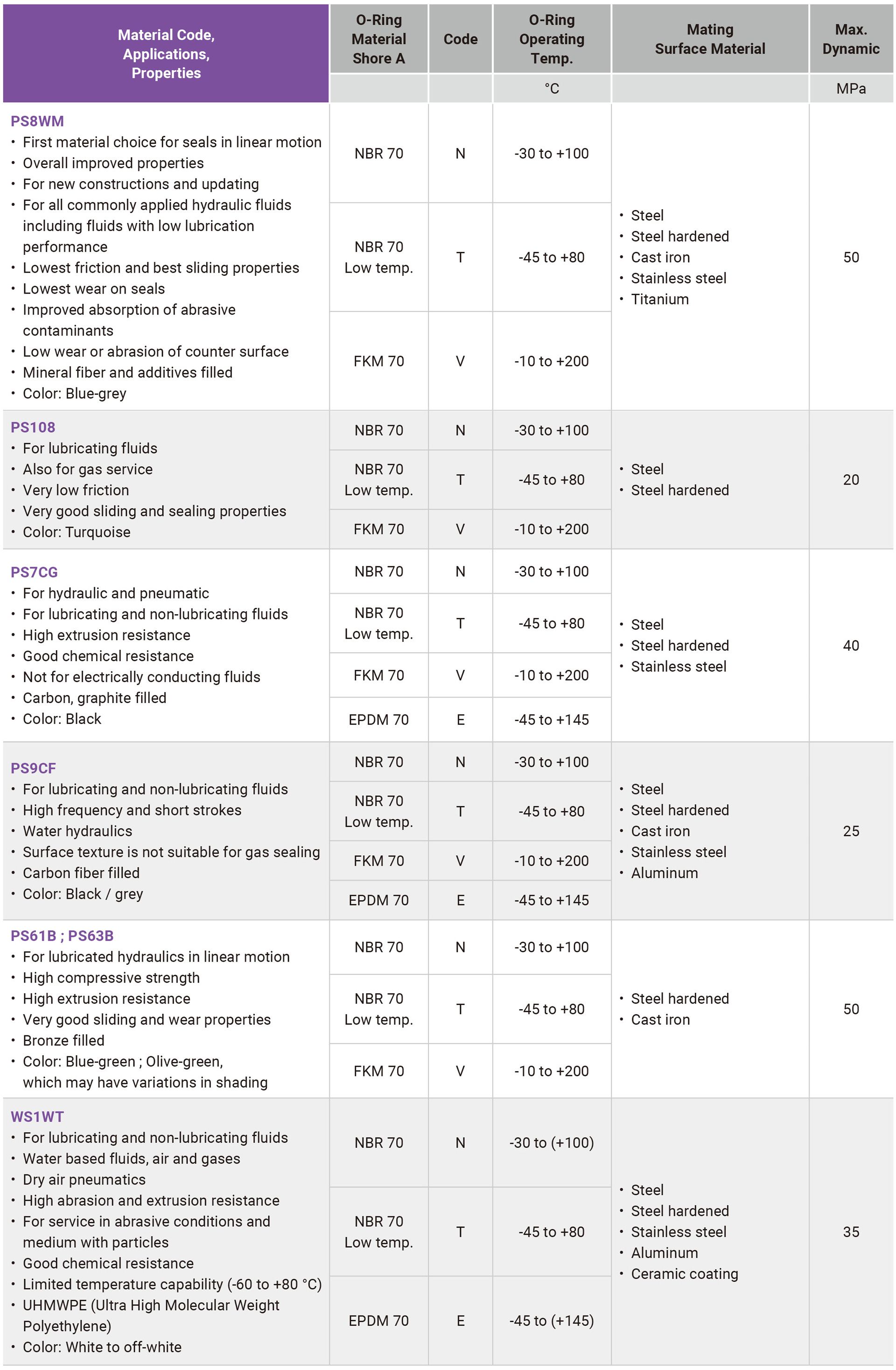

Materials for PGM

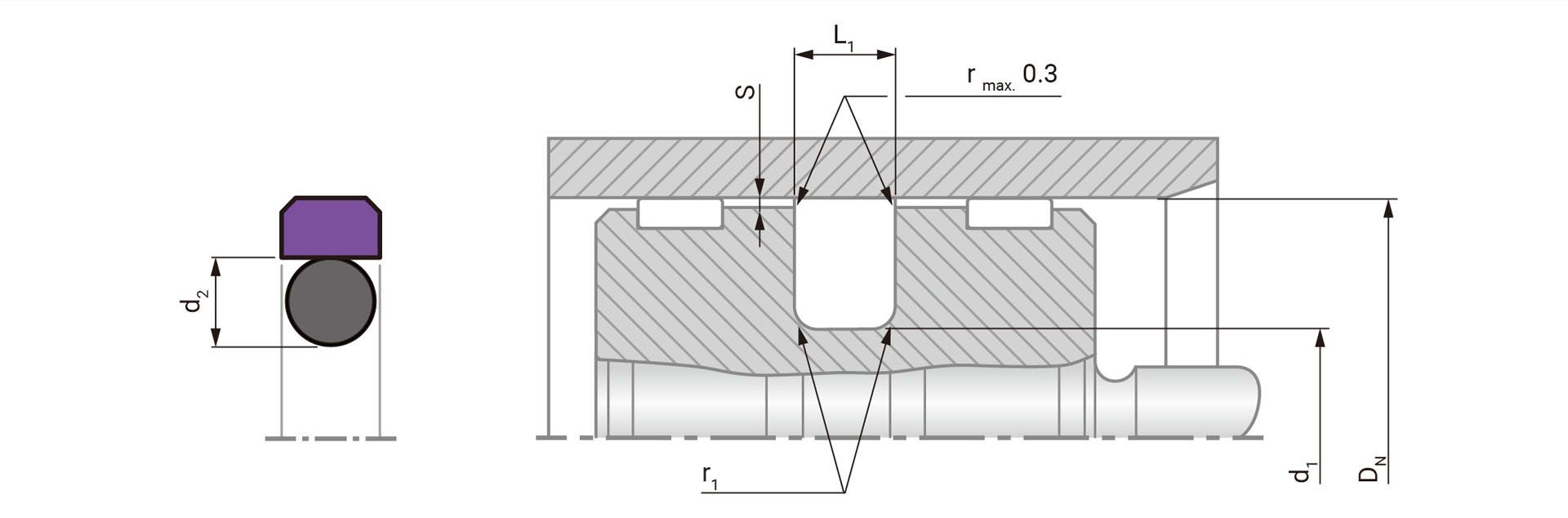

Installation Dimensions - Standard Recommendations

Series No. Bore Diameter DN H9 Groove Diameter Groove Width
Standard Application Light Application Heavy Duty Application d1 h9 L1 +0.2
PGM 8 - 14.9 15 - 39.9 - DN - 4.9 2.2
PGM 15 - 39.9 40 - 79.9 8 - 14.9 DN - 7.5 3.2
PGM 40 - 79.9 80 - 132.9 15 - 39.9 DN - 11.0 4.2
PGM 80 - 132.9 133 - 329.9 40 - 79.9 DN - 15.5 6.3
PGM 133 - 329.9 330 - 669.9 80 - 132.9 DN - 21.0 8.1
PGM 330 - 669.9 670 - 999.9 133 - 329.9 DN - 24.5 8.1
Series No. Radius Radial Clearance Smax O-Ring Cross Section
r1 max 10 MPa 20 MPa 40 MPa d2
PGM 0.4 0.30 0.20 0.15 1.78
PGM 0.6 0.40 0.25 0.15 2.62
PGM 1.0 0.40 0.25 0.20 3.53
PGM 1.3 0.50 0.30 0.20 5.33
PGM 1.8 0.60 0.35 0.25 7.00
PGM 1.8 0.60 0.35 0.25 7.00

Ordering Guide

PGM complete with O-Ring, standard application:

Series PGM
Bore Diameter DN = 80.0 mm
TMK Part No. PGM0800081

PGM 0800 081 PS8WM N

   1        2      3         4        5

1 TMK Series No.
2 Bore Diameter x 10
3 Groove Width x 10
4 Material Code ( Seal Ring )
5 Material Code ( O-Ring )

Installation Dimensions / TMK Part No.
